MicroLogix PLC

AB automation | MicroLogix PLC



Introduction Letter :





All the automation plc parts we sold, 100% brand new! Coming with original packing!

MicroLogix System                                                            automation

MicroLogix 1000, MicroLogix Controller, Allen Bradley, Allen Bradley PLC, AB PLC

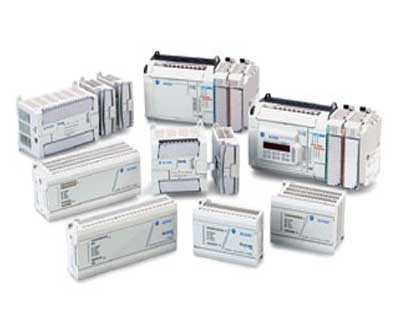

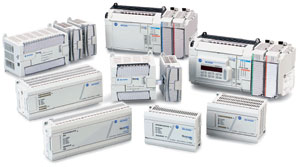

MicroLogix 1000 1200 1500 Controller
B
ased on the architecture of the market-leading SLC 500 controller family, the MicroLogix 1000 controller brings high-speed, powerful instructions and flexible communication to applications that demand compact, cost-effective solutions.
The MicroLogix 1000 controller is availle in 10-point, 16-point, or 32-point digital I/O versions. Analog versions are also availle with 20 digital I/O points, with 4 analog inputs (2 voltage and 2 current) and 1 analog output (configurle for either voltage or current).
The analog I/O circuitry for the MicroLogix 1000 controller is embedded into the base controller, not accomplished through add-on modules: so, it provides very high-speed, cost-effective analog performance.
The MicroLogix 1000 controller uses Rockwell Software RSLogix 500 programming software and shares a common instruction set with the MicroLogix 1100, MicroLogix 1200, MicroLogix 1500, and SLC 500 families of controllers.



MicroLogix 1100 Controller
The MicroLogix 1100 controller is our newest family of controllers to join the popular MicroLogix 1000, MicroLogix 1200, and MicroLogix 1500 controllers, and is designed to broaden application coverage through embedded analog inputs, Ethernet communication, and visualization capilities. MicroLogix 1100 controllers maintain the same critical features you have come to expect from the MicroLogix family, and expand that capility to include true online editing. MicroLogix 1100 controllers complement our low-end controllers for applications that require up to 80 digital I/O.
Each MicroLogix 1100 controller contains 2 embedded analog inputs, with 10 digital inputs and 6 digital outputs. The controller can also expand its I/O capilities by using the same modules as the MicroLogix 1200 controller. Up to four of the 1762 I/O modules can be used with a single MicroLogix 1100 controller.
Using the latest version of our world-class RSLogix 500 programming software, the MicroLogix 1100 controller can be programmed with an instruction set that is common with the MicroLogix 1000, MicroLogix 1200, MicroLogix 1500, and SLC 500 families of controllers.
RSLogix 500 Starter, Standard, and Professional applications all support the MicroLogix 1100 controller, including its online editing capilities.
Each controller supports a built-in RS-232/RS-485 combo port for serial and networked communication and a second built-in EtherNet/IP port, which supports Ethernet peer-to-peer messaging.
An embedded LCD screen lets you monitor controller and I/O status, as well as make changes to bit and integer data.

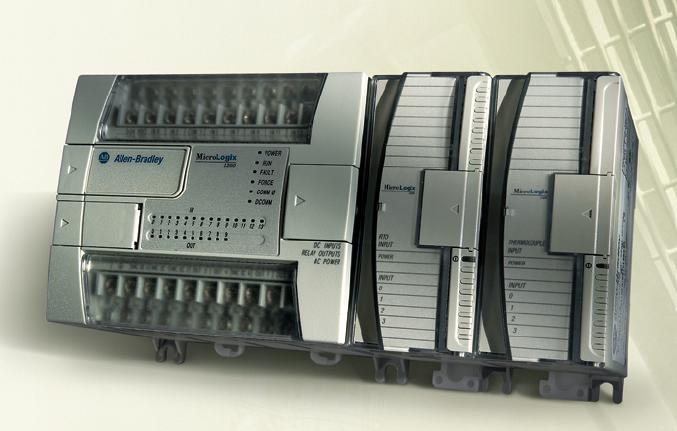

MicroLogix 1200, MicroLogix Controller, Allen Bradley, Allen Bradley PLC, AB PLCMicroLogix 1200 Controller
The MicroLogix 1200 controller provides more computing power and flexibility than the MicroLogix 1000 controller to solve a variety of application needs. Availle in 24- and 40-point versions, the I/O count can be expanded by using rackless I/O modules. This results in larger control systems, greater application flexibility and expandility at a lower cost and reduced parts inventory. A field-upgradle flash operating system that helps to make sure you will always be up-to-date with the latest features, without having to replace hardware. The controller can be easily updated with the latest firmware via a website download.



MicroLogix 1500, MicroLogix Controller, Allen Bradley, Allen Bradley PLC, AB PLCMicroLogix 1500 Controller
The MicroLogix 1500 controller is a world-class programmle logic control platform with even more advanced features and performance than the MicroLogix 1200 controller. Many of these features allow this controller to be used in applications where much larger controllers were required in the past. MicroLogix 1500 architecture features an innovative two-piece design with a small footprint. The processor and base units slide together to form the complete controller. The processor and base are independently replacele, allowing you to maximize your embedded I/O, memory, and communication options while minimizing inventory stocking costs. Bulletin 1769 Compact I/O modules expand the controller’s embedded I/O offerings and provide the additional flexibility to cover a wide range of applications. This high-performance modular and rackless I/O platform provides front accessibility for removal and insertion. Removle terminal blocks further lower the total system cost by reducing start-up and maintenance time. New features are provided with an enhanced user interface that uses function files to consolidate programming parameters. This simplifies the user interface and increases controller performance. The MicroLogix 1500 controller includes all the features of the MicroLogix 1200 controller, plus more.
