Siemens LOGO! - The Programable Relay - with New Siamtic LOGO! TD Display
Forget individual components, such as rotary timers, cube relays, counters and contactors - Simatic LOGO! is the complete all-in-one solution. With its 8 basic and 30 special functions, Siemens LOGO! replaces a whole range of hardwired controls. The new Siemens LOGO! TD remote display can also replace panel mount devices such as loop controllers, panel meters, digital timers/counters. Easy-to-mount, minimum wiring, easy programming, done!
Low-cost and easy-to-use solution for simple control tasks
Compact, flexible I/O choices, and acceptable for many applications
Built-in display or New Siemens LOGO! TD remote display for basic operator control and messaging
New Simatic LOGO! TD display supports 4 lines of text, bar graphs, embedded values and multi-language messages
38 control functions can be connected at the click of a button or using Soft Comfort programming software
Functions are easily changed at the press of a key. No more time-consuming rewiring
Siemens LOGO! – Products and solutions

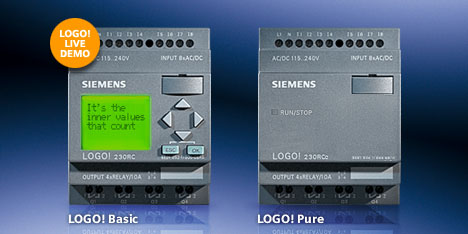

Simply unique – simply ingenious Simatic LOGO!, the intelligent logic module with forward-thinking technology. Simatic LOGO! inspires you to be completely flexible. The Siemens LOGO! ‘Basic’ and Siemens LOGO! ‘Pure’, together with a wide range of expansion modules, cover a broad spectrum of applications and are always capable of future modifications.
Siemens LOGO! – logical way to reduce costs
• Replaces many conventional switching devices
• Smaller footprint in switchgear/control cabinet
• Fewer accessories
• Requires fewer items to be stocked
• Lower-maintenance due to solid-state components
Siemens LOGO! – reduce implementation time
• Simply snaps onto a 35 mm DIN rail
• Less wiring
• Simple ‘drag-and-drop’ graphical programming interface
• Freely available, pre-tested sample programs can easily be adapted, tested, and transferred without error
• Simple configuration
• Advanced documentation generation and version control
• Automatic daylight savings time adjustment on the LOGO! units that have a Real-Time-Clock
Siemens LOGO! – compact and space saving• 4 modular widths are sufficient to replace a large number of relays, time switches and contactor relays
• 8 basic and 31 special functions replace many switching devices
• Saves space on accessories and mounting options
Siemens LOGO! – universally usable
• Can be used in both industrial and residential applications
• Vibration tolerant
• High electromagnetic compatibility (EMC)
• Worldwide industry-standard certifications
• Suitable for most climatic conditions (SIPLUS versions are available for extreme temperature and harsh chemical environments)
• Radio interference suppression class B
SIPLUS upmiter *)
Input: DC 10,5 .. 59V
Output: DC 20,4 .. 28,8V / 1,25A
for operation to combustion engines
6AG1053-1AA00-2AA0
Accessories *)
LOGO! PROM V5
6AG1057-1AA01-0BA5
Mounting Kit 4TE
6AG1057-1AA00-0AA0
Mounting Kit 4TE with buttons
6AG1057-1AA00-0AA3
Mounting Kit 8TE
6AG1057-1AA00-0AA1
Mounting Kit 8TE with buttons
6AG1057-1AA00-0AA2
Extended ambient temperature range (-40 ... +70°C) and extraordinary medial load (Conformal Coating) e. g. chlorine-sulfate atmosphere (compliance with UL/cUL approval, at cUL use ambient temperature only up to +55°C in preparation)
