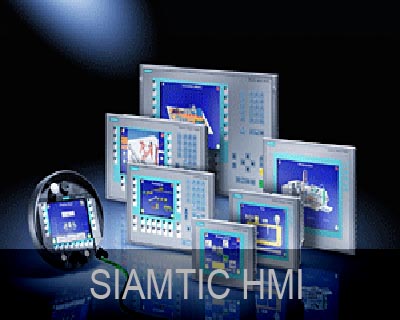

SIMATIC HMI Operator interfaces- the right solution for every task SIMATIC HMI offers the full product family for machine level human machine interfaces from a single source: starting with Push Button Panels right up to powerful Multi Panels.
SIMATIC Push Button Panels
the bus-capable alternative to conventional control panels.
The SIMATIC Push Button Panels make it possible.
They arrive on your premises already equipped with multi-colored, long-life flat LEDs with rugged short-stroke keys.
You only have to position the Push Button Panel in the appropriate installation cutout and plug in the power supply and a standard bus cable to connect all operator elements correctly to the PLC. Then you are ready to go!
Although the installation concept is innovative, the operator philosophy remains the field-proven one familiar to you by using keys, switches or indicating lamps – living up again to the motto ”Trends you can trust”.
The speed with which you can install the panels is matched by the flexibility with which you can adapt the panels, for example by direct installation of 22.5-mm standard elements of...
SIMATIC Micro Panels
for the control and monitoring of small machines and plants especially for the SIMATIC S7-200.
Especially for the Microsystem SIMATIC S7-200 SIMATIC HMI offers price optimized devices. Text Display TD 100 C
Smallest Text Display with a freely configurable surface Text Display TD 200
Proven Text Display with a 2-line display and 8 function keys Text Display TD 200 C
Text Display based on the TD 200 with up to 20 freely configurable keys Text Display TD 400 C
Four-line Text Display with up to 15 freely configurable keys Operator Panel OP 73micro
Operator Panel with a 3" graphical LC-Display. Touch Panel TP 177micro
Touch Panel with a 5,7" STN-Display which can be mounted in landscape or portrait orientation
Handheld devices for "on-site" operation of machinery and systems. SIMATIC Mobile Panels - HMI goes mobile
Regardless of industry or application, if mobility is required for the "onsite" control of machines and systems, SIMATIC Mobile Panels are the answer, e.g. for larger production systems, complex or hard to access machines, long materials handling or conveyor systems. Highlights
Functional design, user-friendly operation and sophisticated safety concept Configurations
Configuration options with emergency stop wiring Mobile Panel 177
Series 170 Handheld Panel with 5.7" color display. Mobile Panel 277
Series 270 Handheld Panel with 7.5" or 10.4" color display Mobile Panel 277 IWLAN
Wireless Series 270 Handheld Panel with 7.5" color display, also available in a failsafe variant with an emergency stop button. Connection boxes
Patented connection technique PROFIBUS and PROFINET

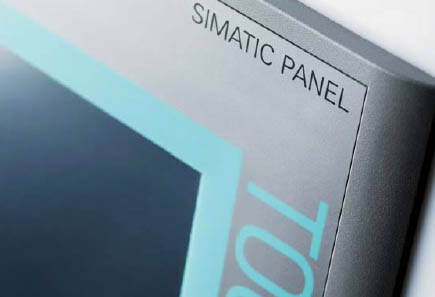

SIMATIC Panels
for efficient operator control and monitoring in different performance categories
Due to their comprehensive functionality SIMATIC Panels provide efficient operator control and monitoring of machines and plants on site.
SIMATIC HMI offers a complete range of devices in well graded product families. Text Panels:
The proven devices for tasks without graphic representation
Information about the migration from text oriented devices to their successors with full graphic capabilities. Series 70:
The clever way to start ? low cost and
Operator Panels with 3" and 4.5" graphics display for smaller HMI tasks. Series 170:
The compact versatile units with comprehensive basic functionality
with pixel graphics 6" display for realistic representation of processes (also in color), either as Touch Panels (TPs)or as Operator Panels(OP) with membrane keyboard. Series 270:
The all-rounder with optimal power and performance
like the series 170 as Touch- or Operator Panels with even more comfort and performance as 6" devices.
SIMATIC Multi Panels
especially performant devices for demanding HMI tasks and other automation applications.
SIMATIC Multi Panels -
More than just operator control and monitoring
As they are the highest performing HMI devices the Multi Panels are suited for most demanding HMI tasks.
In addition to visualization, the Multi Panels are also able to handle other automation tasks, e.g. as a platform for a soft plc. HMI-Functionality
Comprehensive functionality, openess and connectivity as well as simple maintenance Series 170

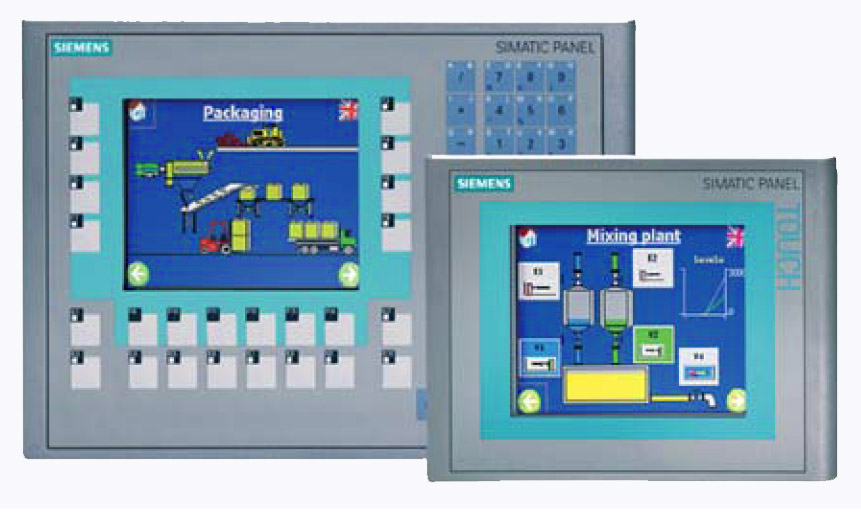

Entry level device to the class of Multi Panels: The MP 177 offers a 6" Touch display Series 270
Medium level devices in the class of multifunctional platforms:
8" and 10" devices in Touch and Key versions. Series 370
Highest performing Multi Panels with 12", 15" and 19" Touch devices and the MP 377 12" Key. INOX Multi Panels
Multi Panels of the series 270 and 370 modified for use in food and beverage industry WinAC MP 2007
Software PLC for medium sized machines and plants employing MP 277 or 377 devices
SIMATIC THIN CLIENT
cost effective operator devices for terminal- or web-client applications SIMATIC HMI-Selection tool
the convenient way to find the panel that meets your demands. The HMI selection tool helps you to save time and protects against misinvestments
